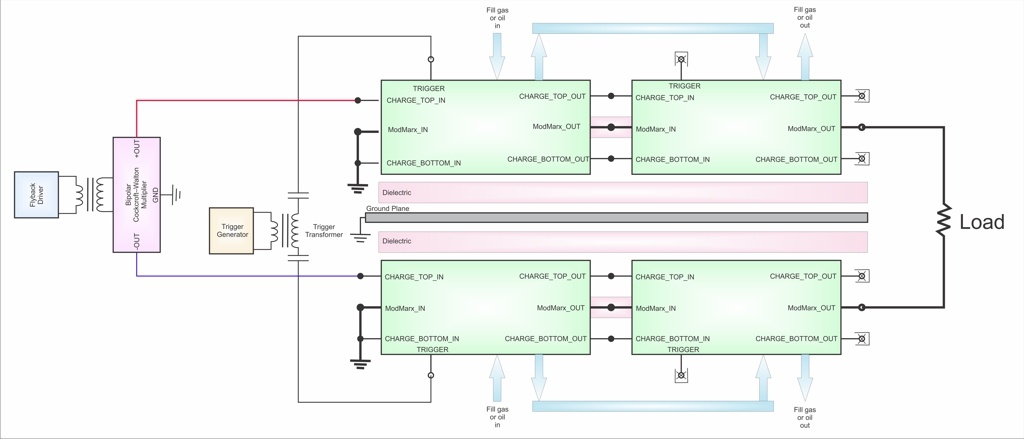

Figure 8 – ModuMarx modules can also be connected to form a full bipolar pair. For example, this bipolar Marx generator with two ModuMarx modules for each polarity would produce a theoretical maximum open-load output of ±900kV, or 1.8MV between the outputs.
High voltage Marx generator built from ModuMarx modules (c)2018 David Prutchi PhD
